AOS-3528A
產品介紹：
功能&接口 Function & Interface | 詳細描述 Detailed Description |
CPU | Rockchip RK3528A Cortex-A53四核，最高主頻2.0GHz Rockchip RK3528A Cortex- A53 quad-core, up to 2.0GHz |
DDR | LPDDR4 1GB（2GB/4GB可選） LPDDR4 1GB (2GB/4GB optional) |
存儲 Storage | 默認標配8GB EMMC NAND芯片，可擴展至最大128GB The default comes with an 8GB EMMC NAND chip that can scale up to 128GB |
HDMI輸出 HDMI Output | Micro HDMI 2.0標準顯示接口，最高支持4K輸出 Micro HDMI 2.0 standard display interface supports up to 4K output |
USB 2.0接口 USB 2.0 Interface | 1個USB2.0外置橫插接口 1 USB2.0 horizontal connectors |
串口 Serial Port | 1個1.25mm 3pin TTL調試串口 1 1.25mm 3-pin built-in serial port |
TF卡 Micro SD Card | 自彈式TF卡插座，最高支持256GB TF卡 Self-elastic micro SD card socket, up to 256GB capacity |
WiFi | 內置高性能SDIO接口WiFi6模塊，支持IEEE 802.11 b/g/n/ax，默認單頻WiFi6 Built-in high performance SDIO interface WiFi6 module, support IEEE 802.11 b/g/n/ax/ac |
藍牙 Bluetooth | 內置高性能串口接口BT模塊，支持V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2 Built-in high performance UART interface BT module with support for V2.1+EDR/BT v3.0/BT v3.0+HS/BT v5.2 |
以太網口 Ethernet | 10/100M自適應以太網RJ45網口 10/100M Adaptive Ethernet RJ45 connector |
擴展接口 Extension Interface | 13pin 2.54mm排針：支持USBx2、CVBS、IR、GPIO接口 13pin 2.54mm pin: Supports USBx2, CVBS, IR, GPIO interfaces |
預留接口 Reserved Interface | 26pin 2.54mm排針：支持I2Sx2、I2Cx2、UARTx2、PDM接口 26pin 2.54mm pin: Supports I2Sx2, I2Cx2, UARTx2, PDM interfaces |
PCIe 2.0 | 16pin PCIe 2.0 FPC接口，可擴展PCIe外設 16pin PCIe 2.0 FPC port expands PCIe peripherals |
實時時鐘 Real Time Clock | 超低功耗RTC電路（外接CR1220紐扣電池），并可支持定時開關機 Ultra-low-power RTC circuit (CR1220 battery) with timer and alarm functionalities |
指示燈 LED Indicator | 綠色工作指示燈 Blue LED indicator for running |
按鍵 Buttons | 燒錄鍵（RECOVERY）和復位鍵 Recovery mode button and reset button |
電源輸入 DC Input | 支持5V-2A電壓直流電源輸入（通過type-c座） Supports 5V-2A voltage DC power input (type-c) |
環境要求 Ambient Requirement | 工作溫度-20°C ~ 70°C，工作濕度0%~95%（不結露） Working temperature -20°C ~ 70°C, working humidity 0%~95% (non-condensing) |
物理尺寸 Physical Size | 長*寬*高（60mm*60mm*14.8mm），PCB正面高度13.5mm Length*Width*Height (60mm*60mm*14.8mm), PCB top side height 13.5mm |
操作系統 Operating System | 推薦安卓13 Recommended Android 13 |

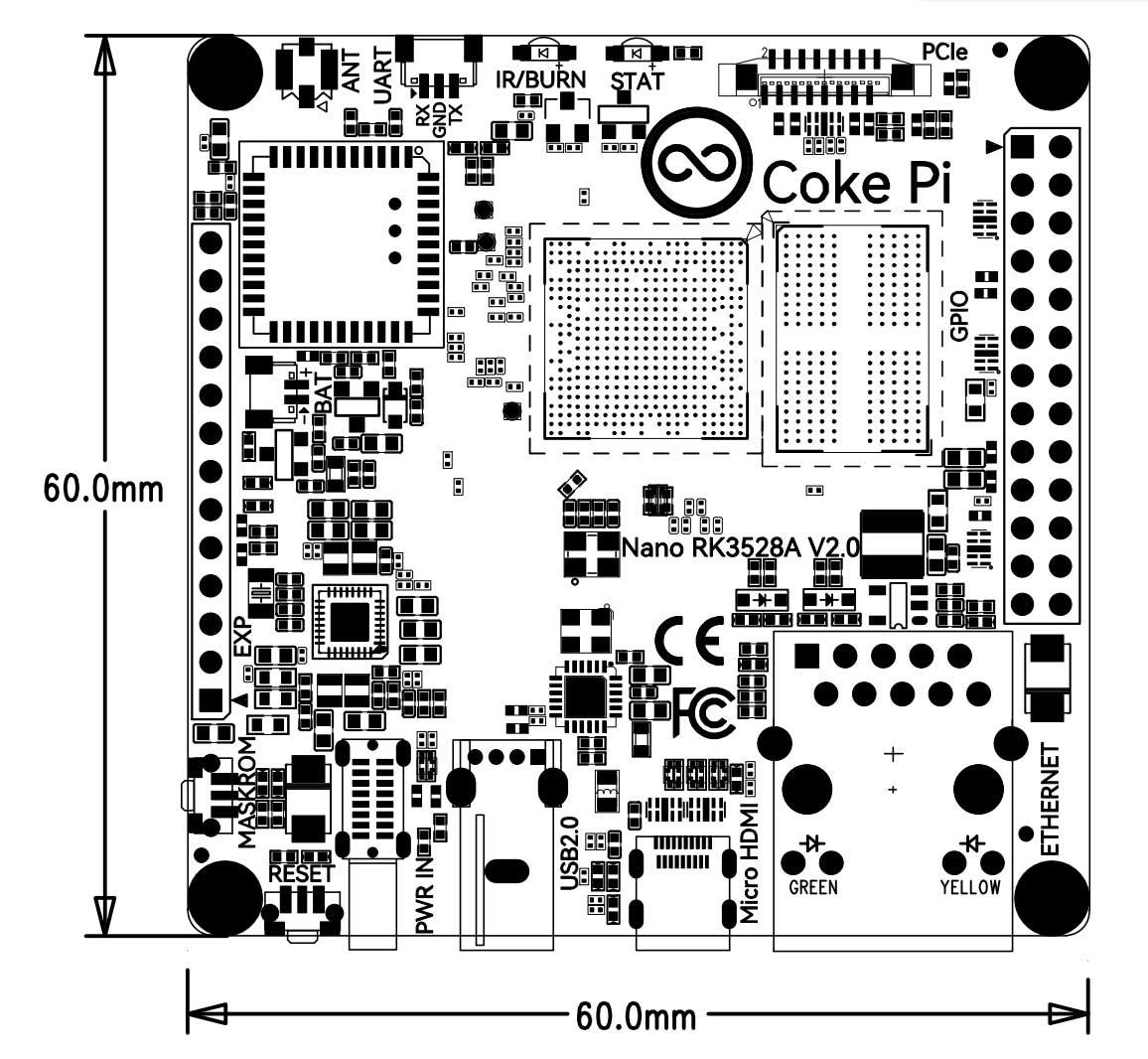

尺寸圖
